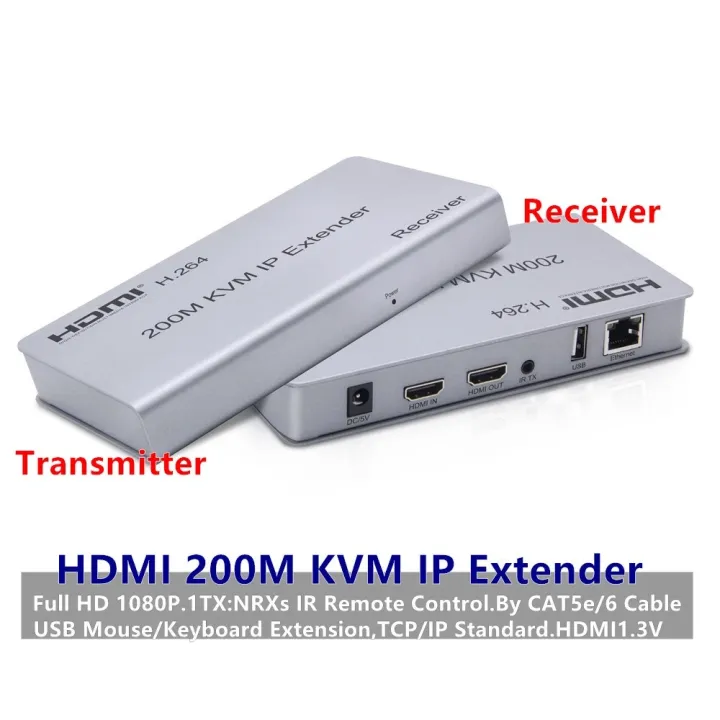

HDMI KVM 200METER IP EXTENDER

1) Connect the HDMI source to the “HDMI IN” of transmitter by HDMI cable.

2) Connect the “HDMI OUT” of receiver to the HDTV display by HDMI cable.

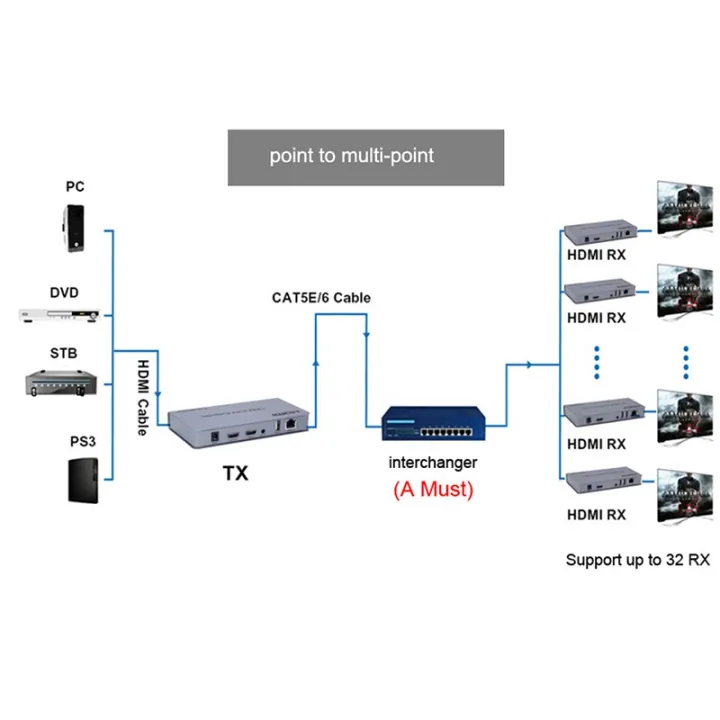

3) Connect the transmitter and receiver with one cat5e/6 cable. CAT6 is recommended for better visual experience

4) Connect the “IR receiver “into “IR-TX” port on transmitter, And “IR transmitter ” into the “IR-RX” on transmitter. Please ensure the IR transmitter aim at IR port of the source

5) Plug the mouse and keyboard into the USB port of the receiver and connect the USB port of the transmitter with the computer if you need the KVM control function

6) Connect two pieces of 5V power supply to the transmitter and receiver, and power on the HDTV supply and HDMI source
