This 4X4 Video Wall Controller, support HDMl input . The video is pushed to multiple monitors to complete the video Mosaic lt is widely used in teaching, restaurants, station and other places.

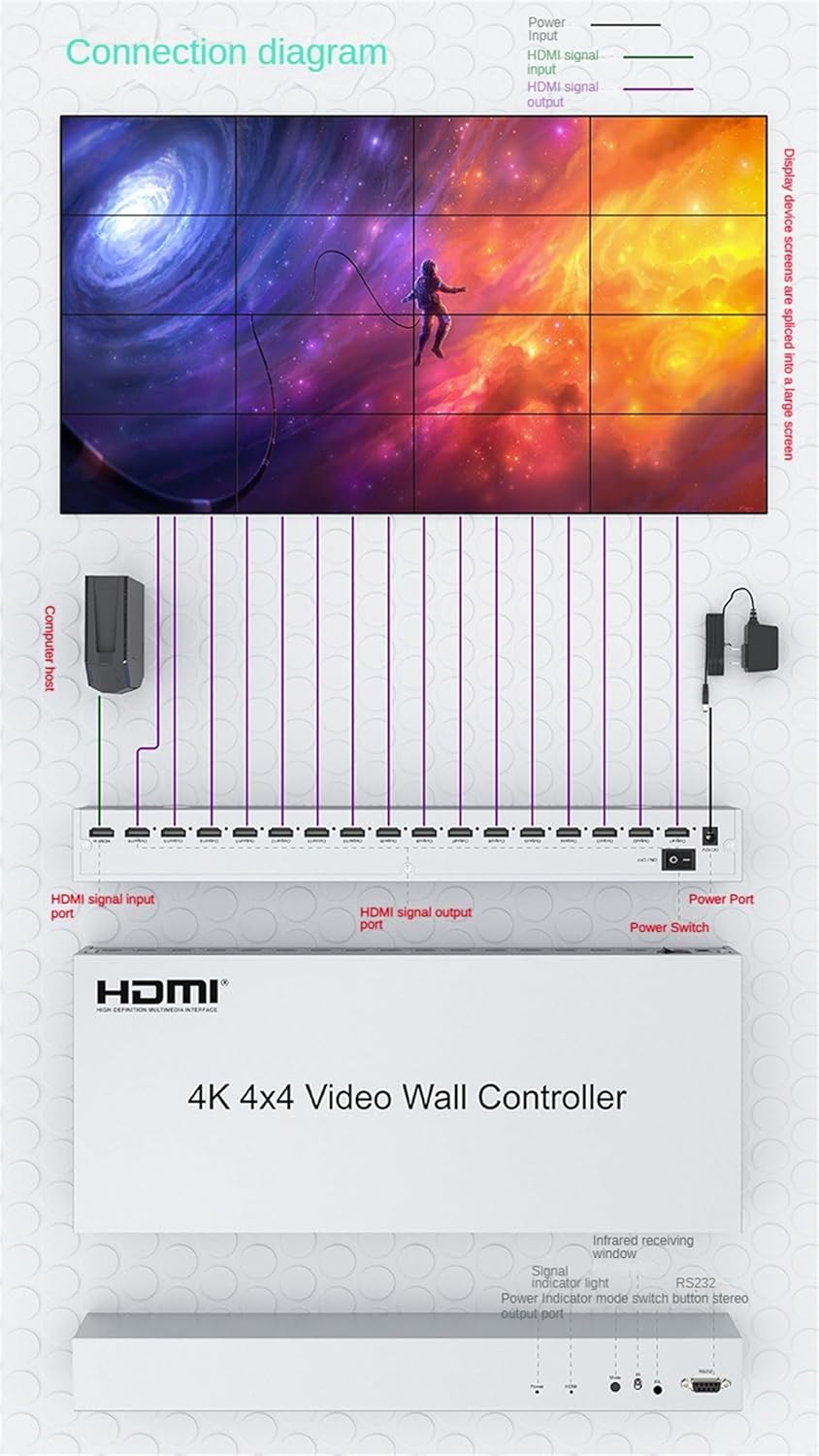

As a video wall controller, the main function is divided a single complete HDMI HD image signal to 16 parts and distribute to 16 display units (Rear projection screens, LCD TV. etc.), which composed to be a dynamic image wall. The operation is plug and play.
Features
Support HDMI video source input;
Support 16-ways HDMl output;
Support multiple splicing modes, easy to handle, plug a play:

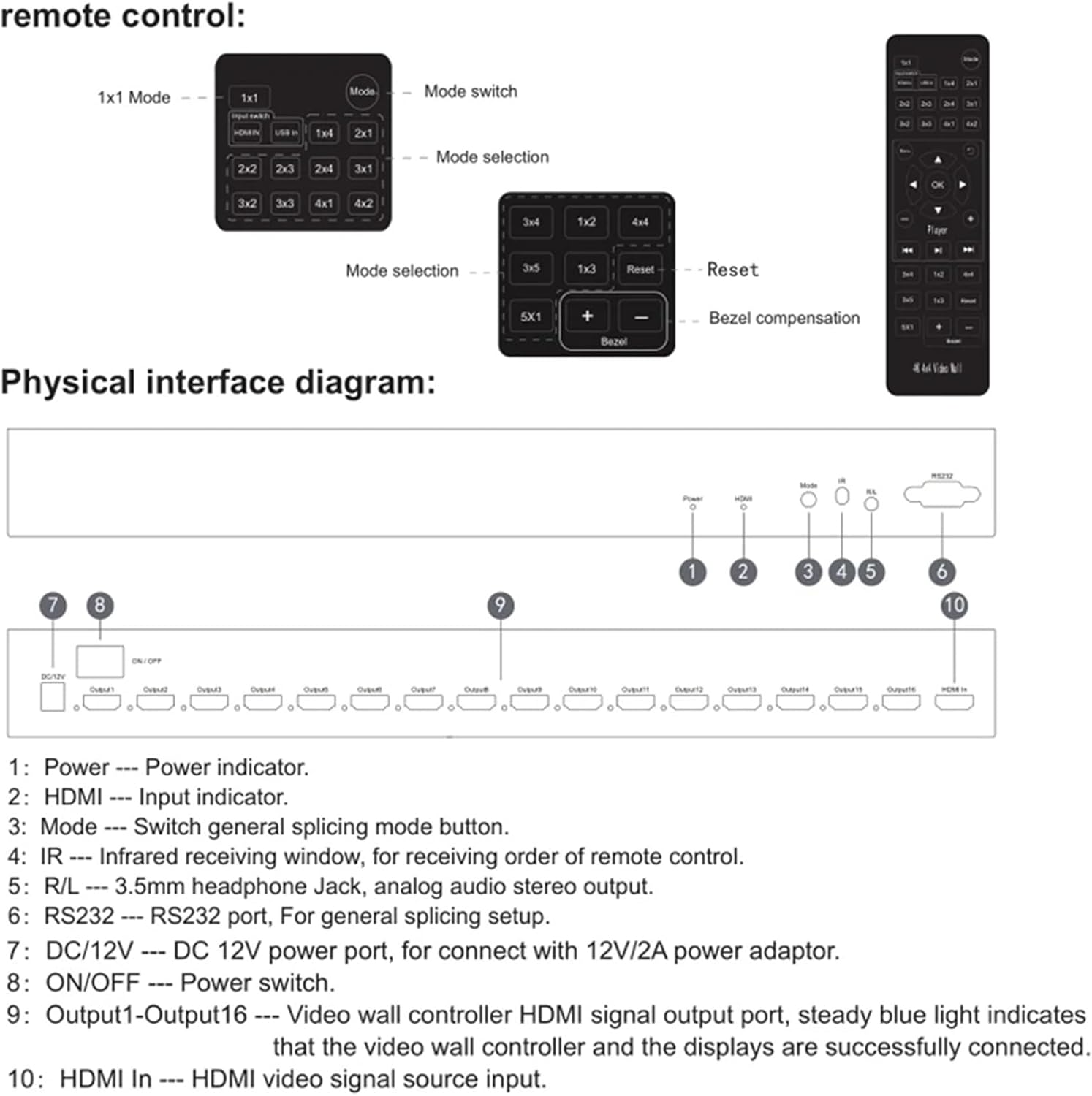

Support IR control.
Specifications
HDMI input resolution :the highest support 3840×2160/30Hz
HDMl output resolution: support 1920×1080/60Hz (one port)
lnput cable length :≤8m AWG26 HDMI standard cable
Output cable length:≤10M.AWG26 HDMI standard cable
Max working current :0.9A
Power adapter specifications :input AC(50Hz,60Hz) 100V-240V Output 12V DC/2A
Operating temperature range:(-10 C~+45C)
Dimension (L x Wx H):411x180x45(mm)
Weight:1.97kg
Package:
4K 4×4 Art Video Wall Controller
Remote control(without battery)
12V DC power adaptor
User manual

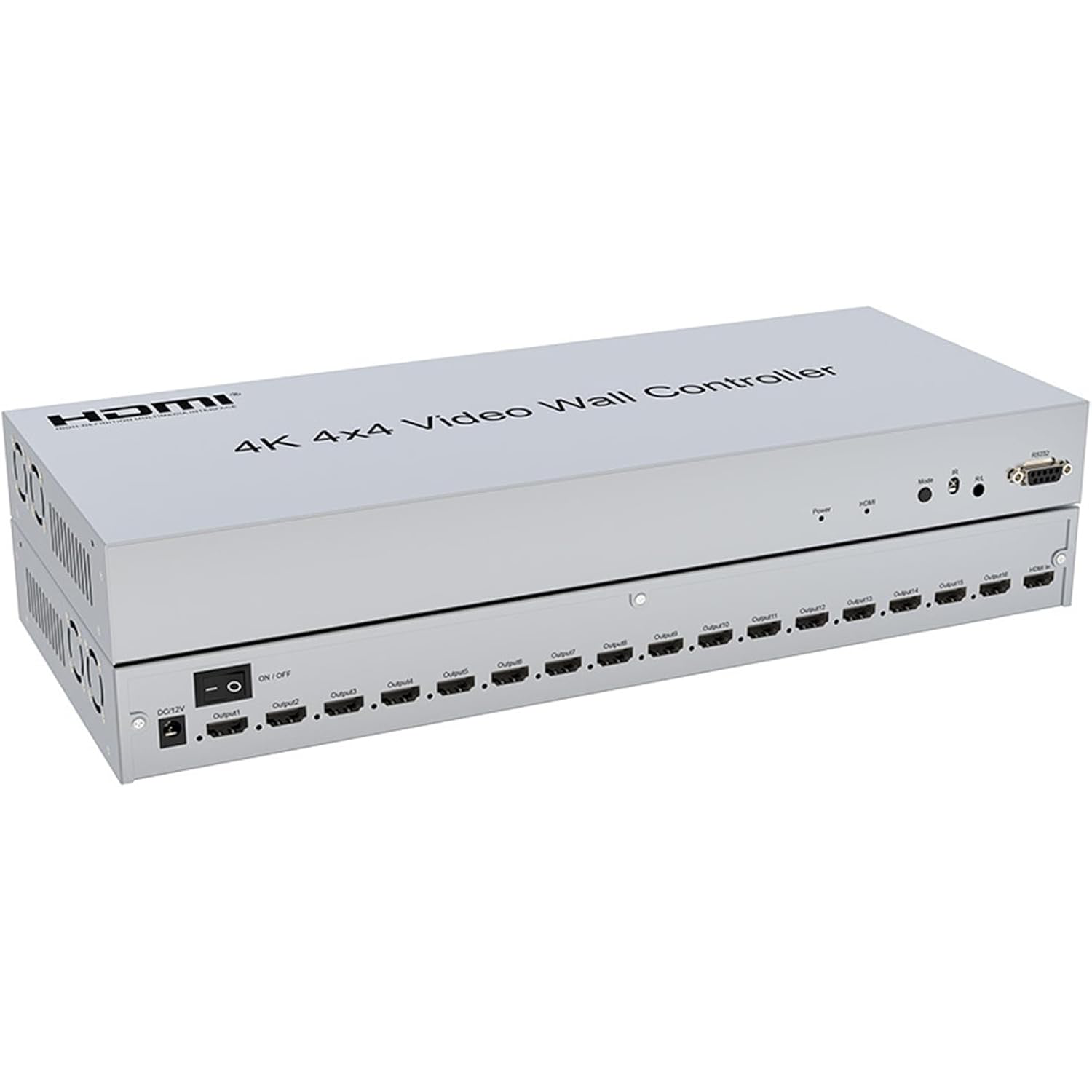

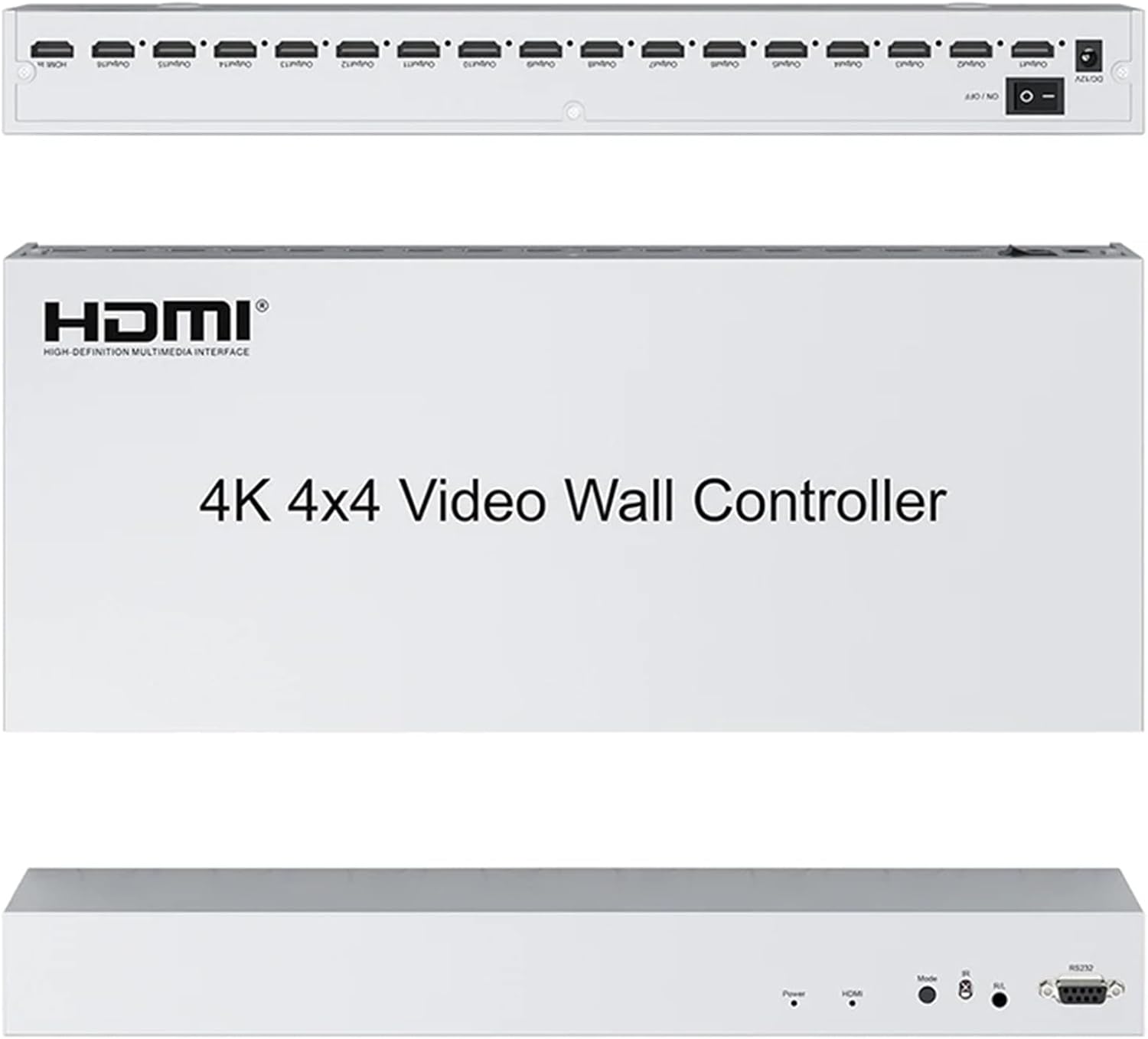

4K 4X4 VIDEO WALL CONTROLLER
Original price was: ₨60,000.00.₨58,000.00Current price is: ₨58,000.00.

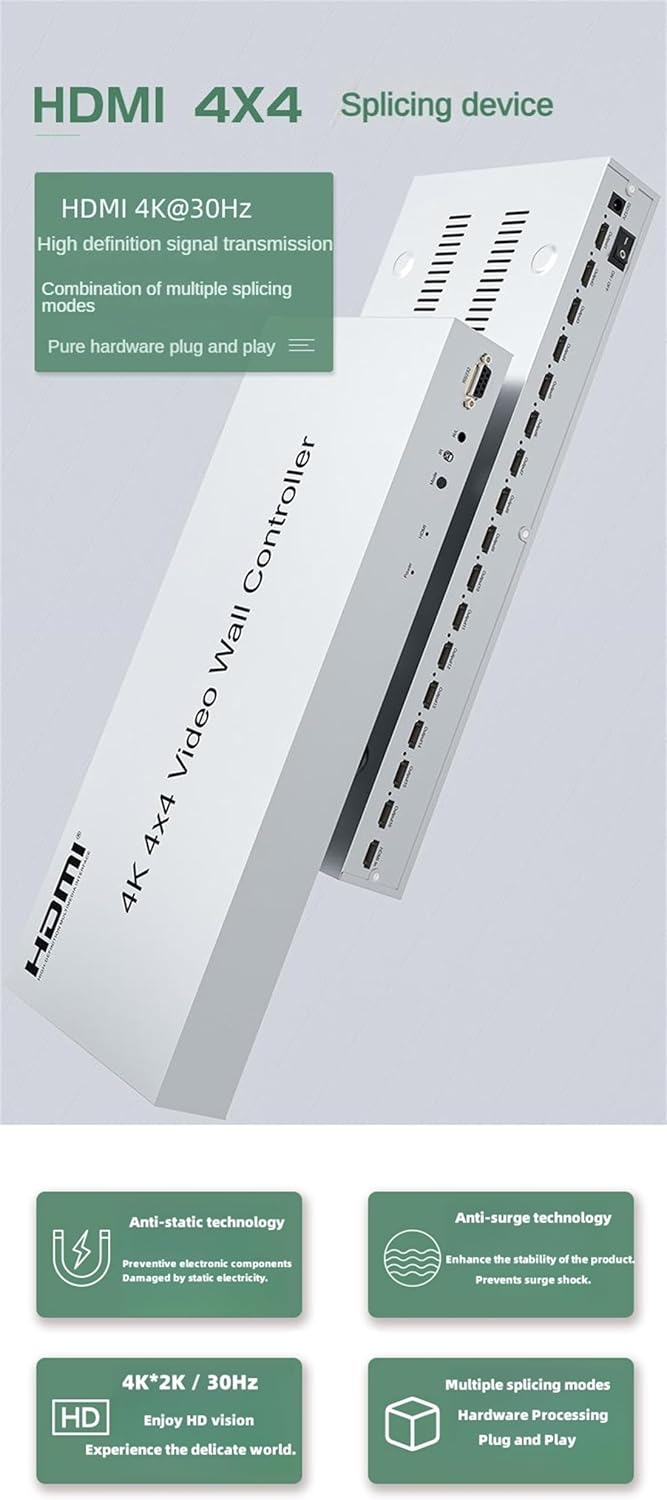

- 4K 4X4 Video Wall Controller: HD signal transmission, multiple splicing mode combinations, pure hardware, plug and play.
- Anti-static technology to prevent electronic components from being damaged by static electricity. Anti-surge technology, enhance the stability of the product, to prevent surge impact.4K * 2K / 30Hz Enjoy high-definition vision, experience the delicate world.
- Multi-device compatibility, easy to operate: support set-top boxes, desktops, notebooks and other devices with HDMI interface to connect TVs, monitors, projectors and other display devices with HDMI interface.
- Intelligent chip, optimized performance: using high-performance chip, to provide a better experience to avoid flashing screen, snow and other undesirable phenomena.

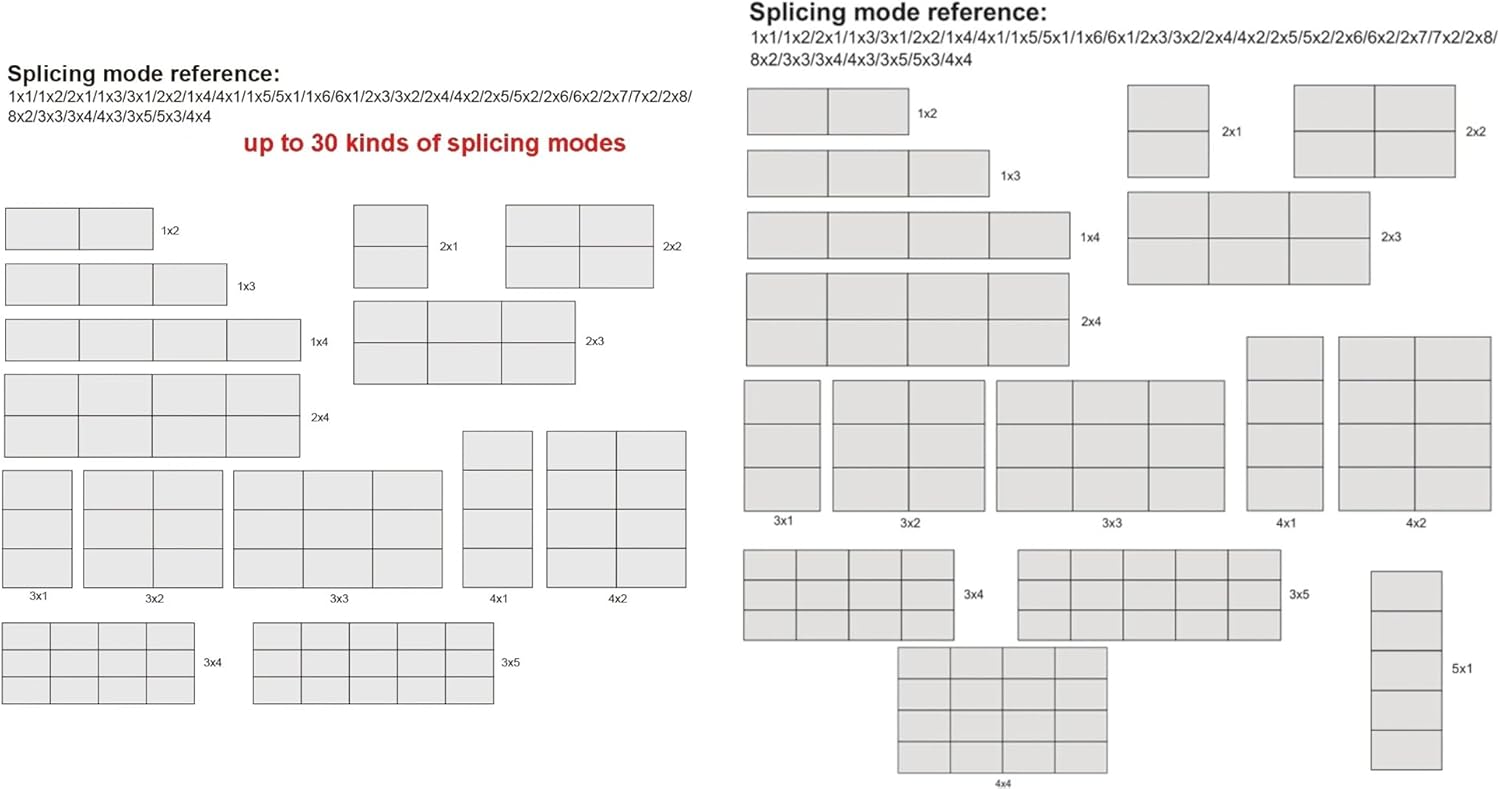

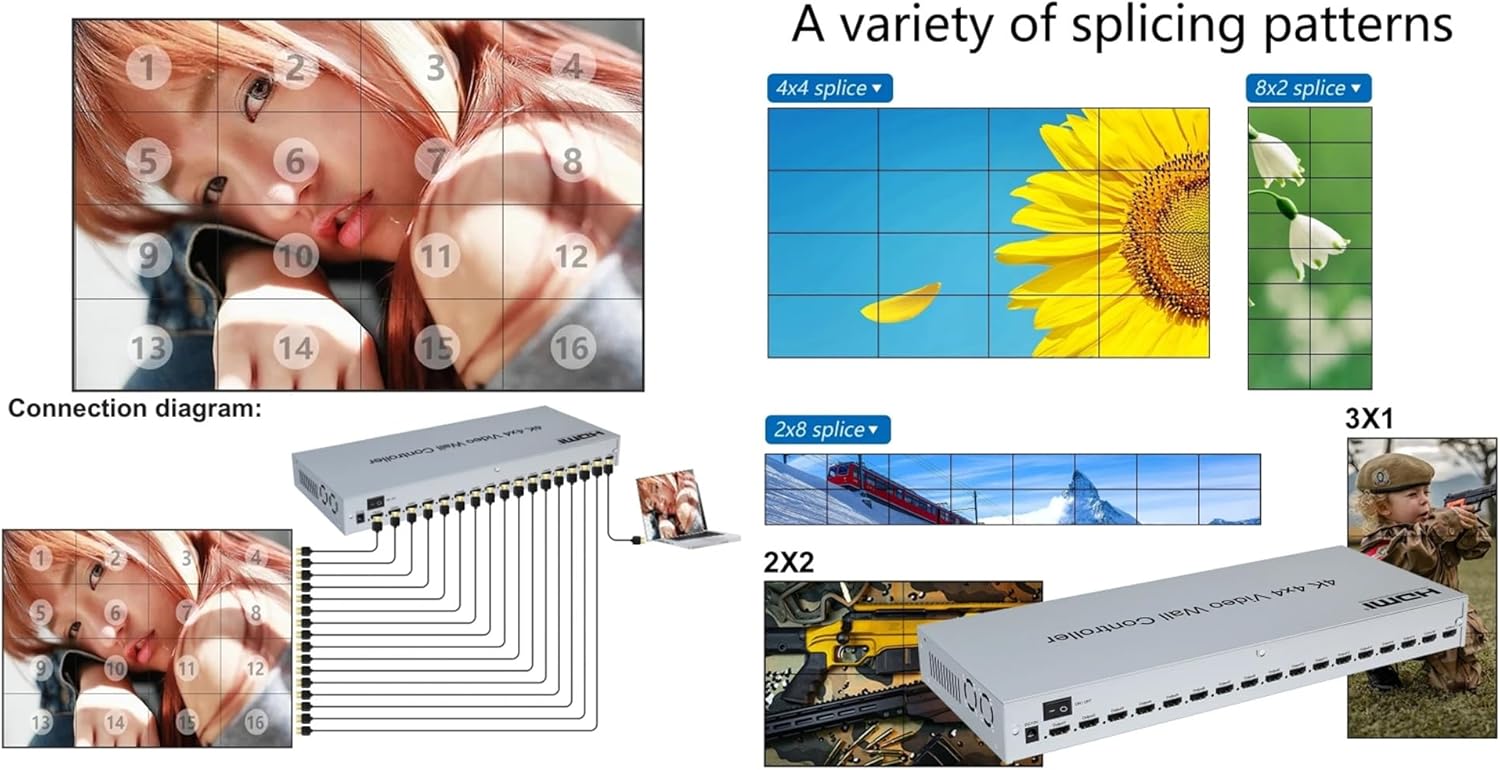

- Multiple splicing modes: can be combined with a variety of splicing modes: horizontal/vertical/field, etc. (a total of 30 modes: 1×1/1×2/2×1/1×3/3×1/2×2/1×4/4×1/1×5/5×1/1×6/6×1/2×3/3×2/2×4/4×2/2×5/5×2/2×6/6×2/2×7/7×2/2×8/8×2) /3×3/3×4/4×3/3×5/5×3/4×4), common mode:2×2/3×3/4×4/1×3/3×1.
In stock
Order on Whatsapp
Reviews
There are no reviews yet.
