2X3 VIDEO WALL CONTROLLER

Product Description

Product Description

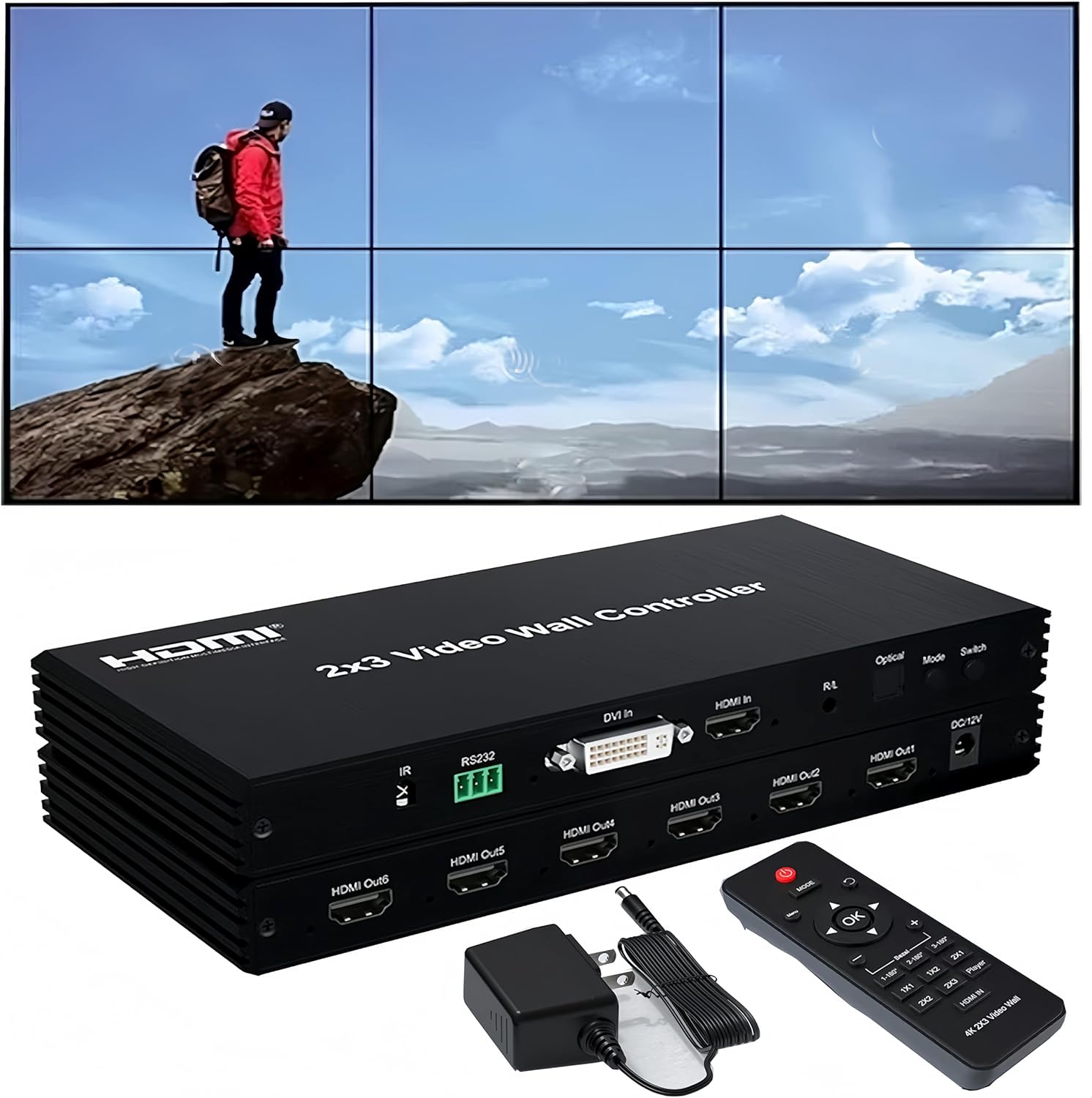

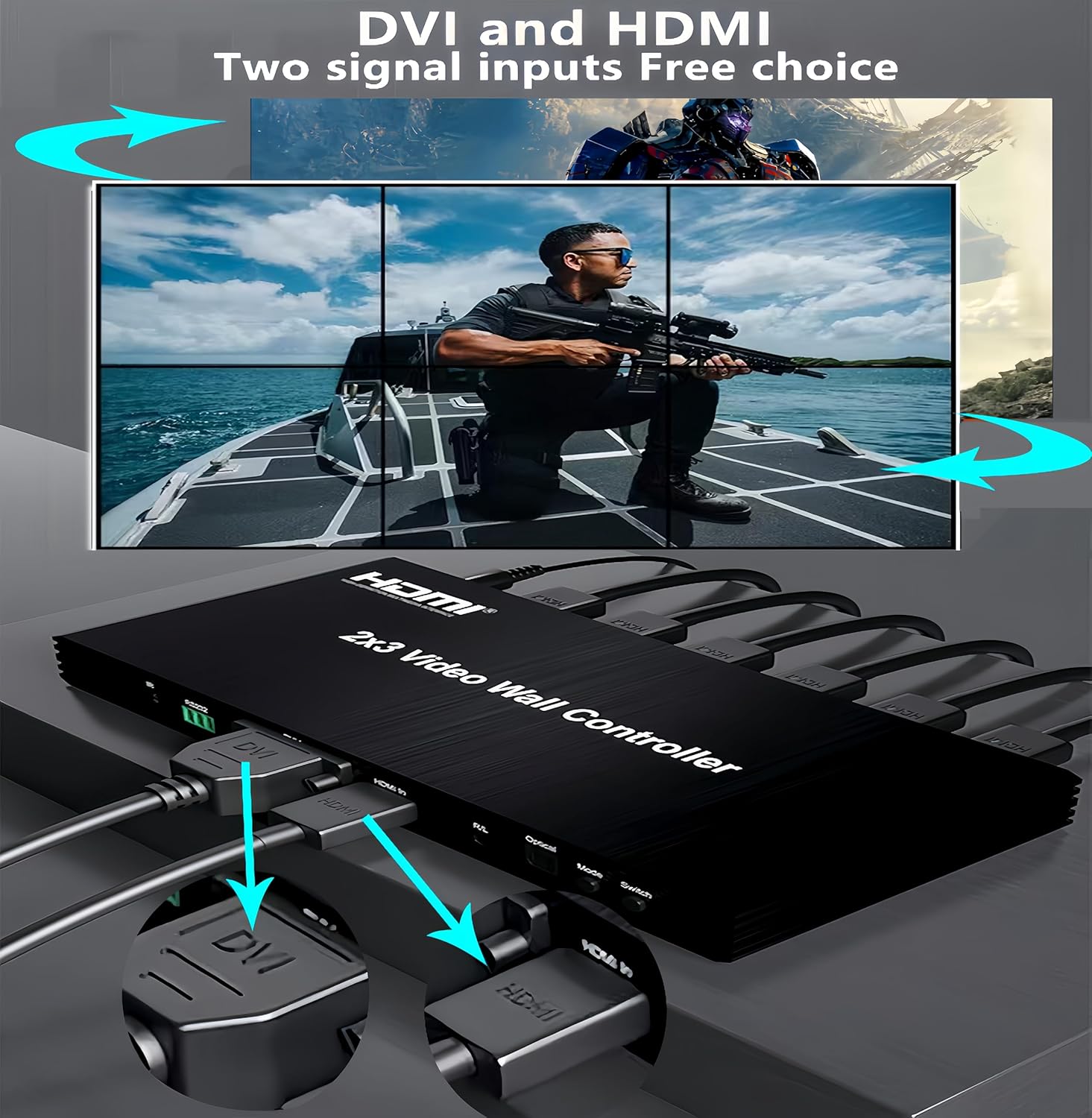

Video Wall Controller:This 2×3 TV wall controller supports 1 way HDMI/DVI input and 6 way HDMI output. The main function is to divide a complete HDMI image signal into 6 display units (rear projection screen, LCD TV, etc.), so that they form a large dynamic image screen to bring you an amazing visual experience.

Specifications：

HDMI input resolution ……………………………………………… 1080P/720P/576p/576i/480P;

HDMI output resolution ……………………….……………………….. support 1920×1080/60Hz;

Support video formats …………………………………….. RGB,YCbCr444,YCbCr442,YCbCr440;

Support audio formats ………………………………………………………………………………….. Stereo;

Maximum Transfer Rate …………………………………………………………….. 3.96Gbit/s（1080P）; Input/output cable length …………………………………. ≤15M,AWG26 HDMI standard cable; Max working current …………………………………………………….…………………….. 280mA; Power adapter specifications ……… input AC (50Hz, 60Hz) 100V-240V Output 12V DC/1A;

Dimension (L x W x H) …………………………………………………………. 226x110x25(mm);

Weight ….…..…………………………………………………………………..………………….. 500g;

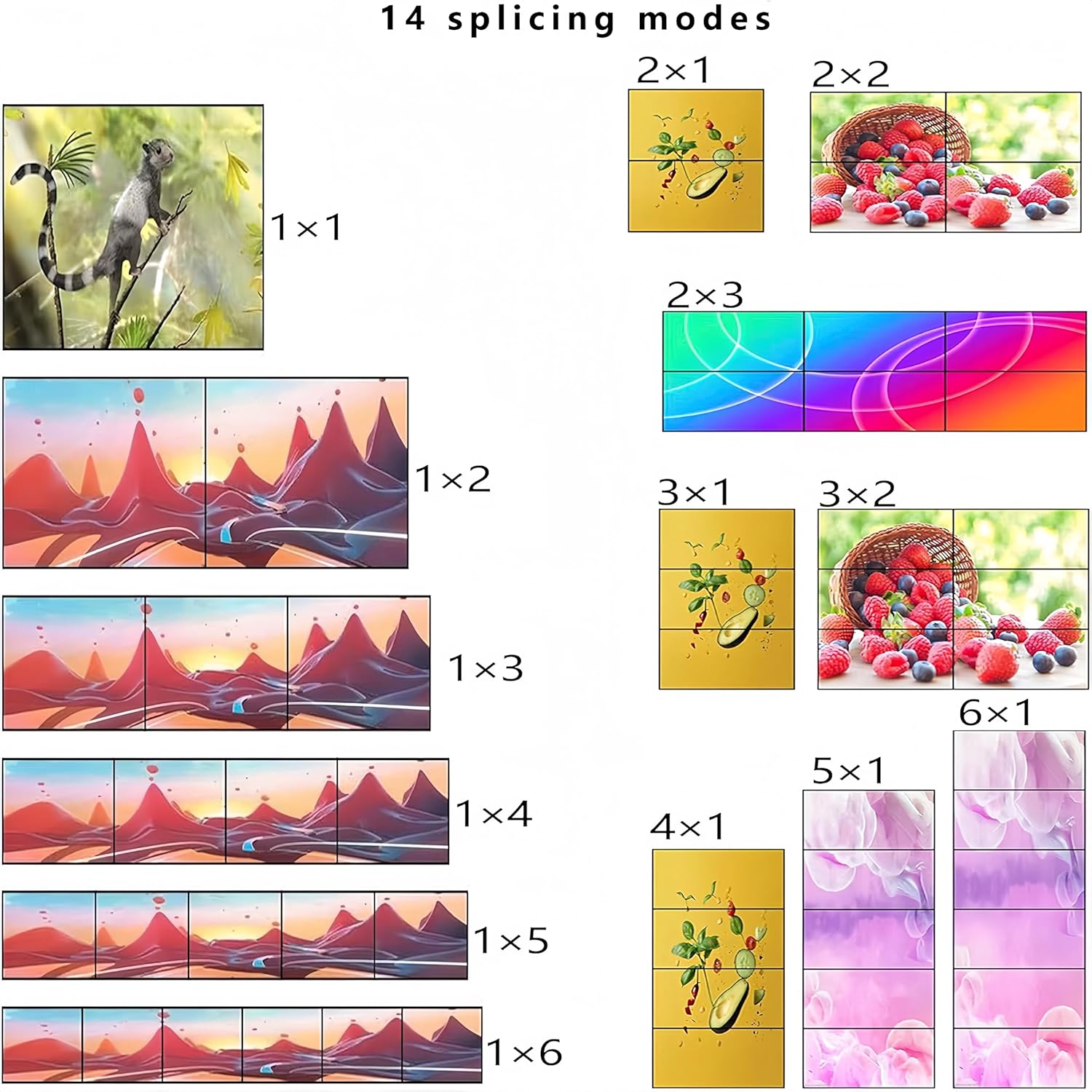

Splicing mode reference: 1×1/1×2/1×3/1×4/1×5/1×6/2×1/2×2/2×3/3×1/3×2/4×1/5×1/6×1;

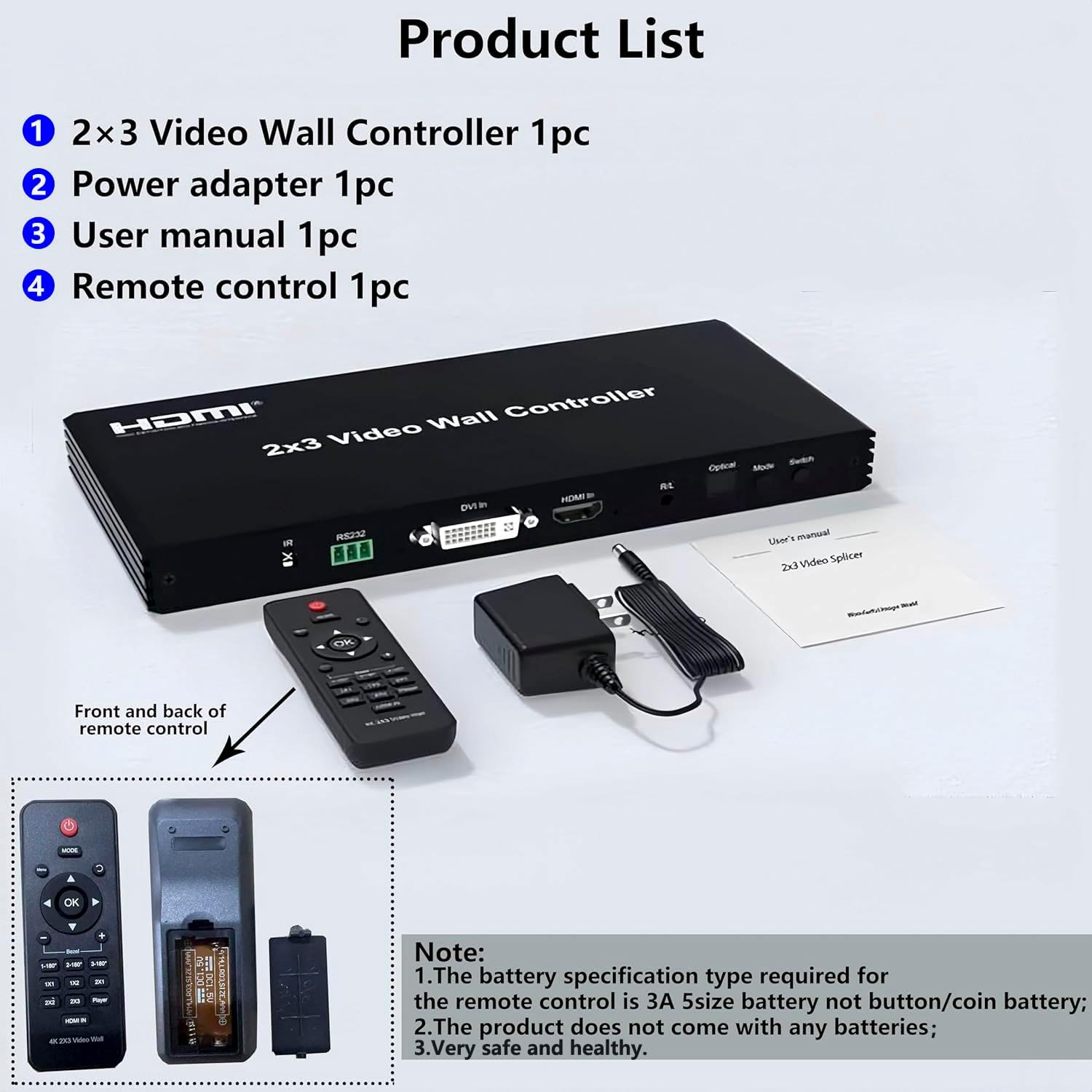

Package include：

1：2×3 Video Wall Controller1PC;

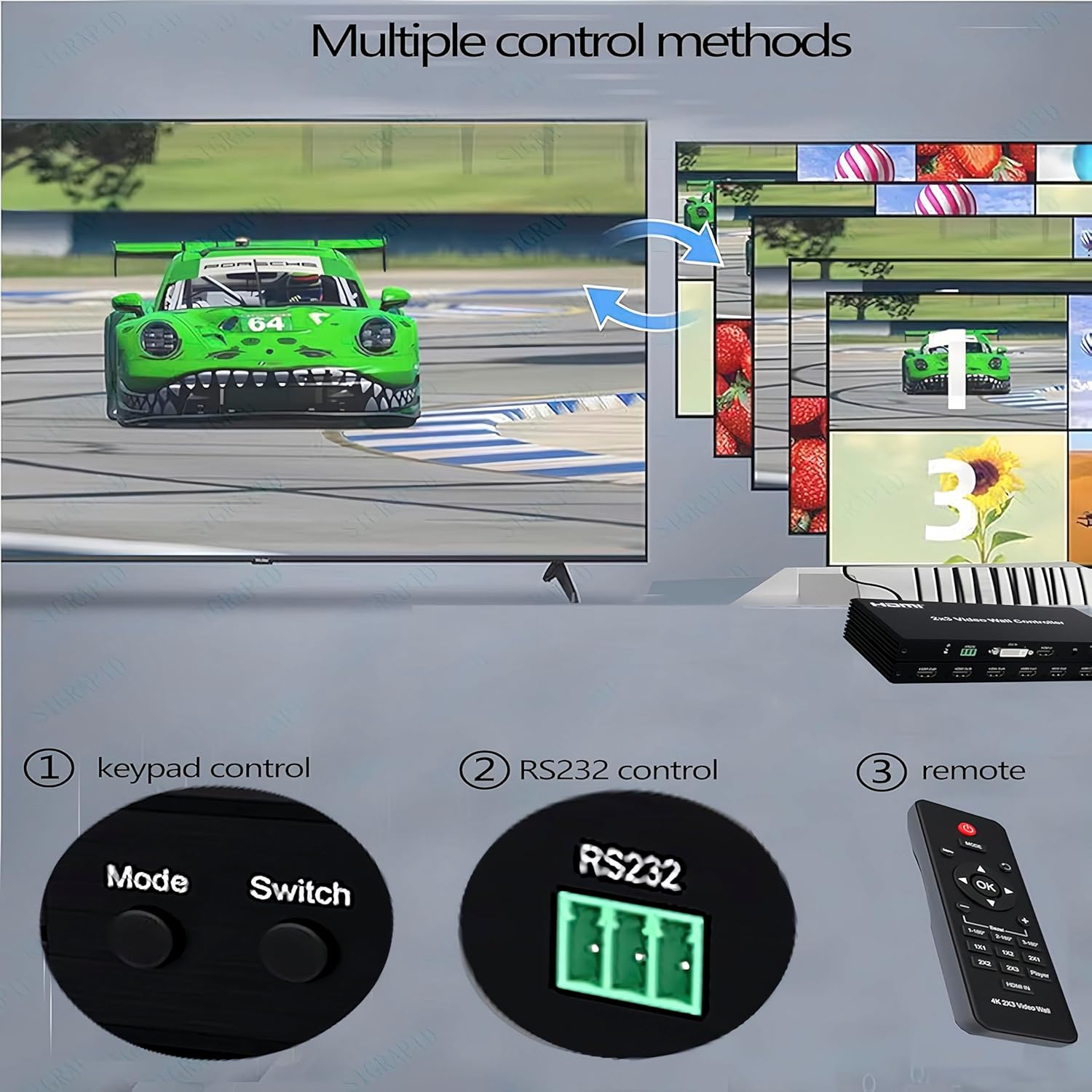

2：Remote control 1PC (Note: This product is only the remote control needs to use batteries, the required battery specifications for the 3A size 5 batteries, not button/coin batteries! And the product does not come with any batteries);

3：12V DC power adaptor 1PC;

4：User manual 1PC.

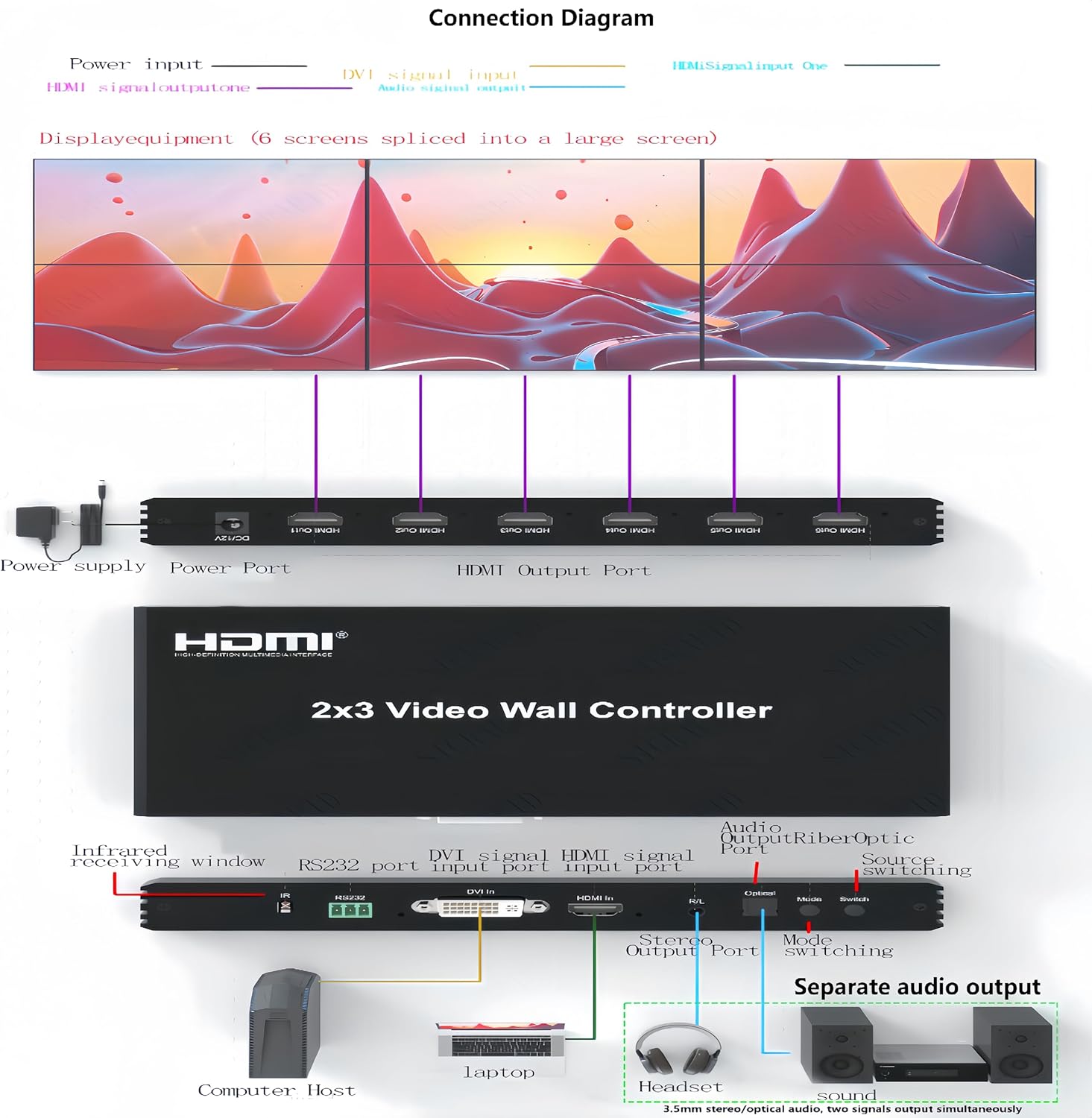

Connection Schematic

high compatibility

Compatible with a wide range of devices:

Computer mainframes, laptops, monitors, projectors, game consoles, etc.

Audio Separation Audio Separate Outputs

Audio Separation Audio Separate Outputs

Audio Separation Audio Separate Output：

Audio separation technology to improve the quality of the audio signal, the

3.5mm stereo/optical audio, two signals at the same time to output independent audio output, to bring users a better listening experience!

Power failure memory function

Power failure memory function

Self-contained power failure protection function, incoming calls automatically restore the display channel before shutdown.

Multi-mode mirror flip

Multi-mode mirror flip

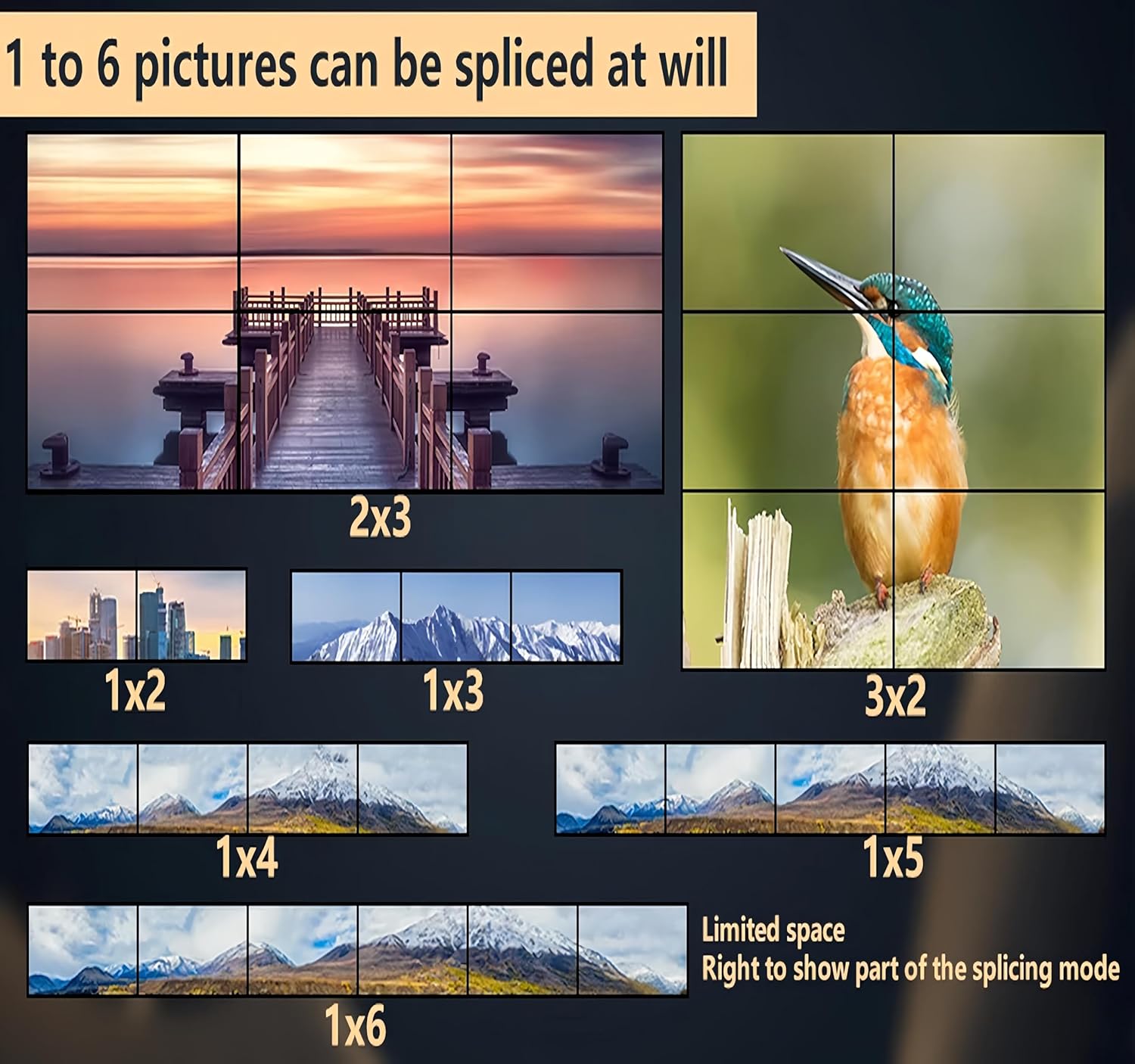

A variety of splicing modes, through the mirror image flip to achieve horizontal and vertical screen effect.
