3X3 VIDEO WALL CONTROLLER

Product Description

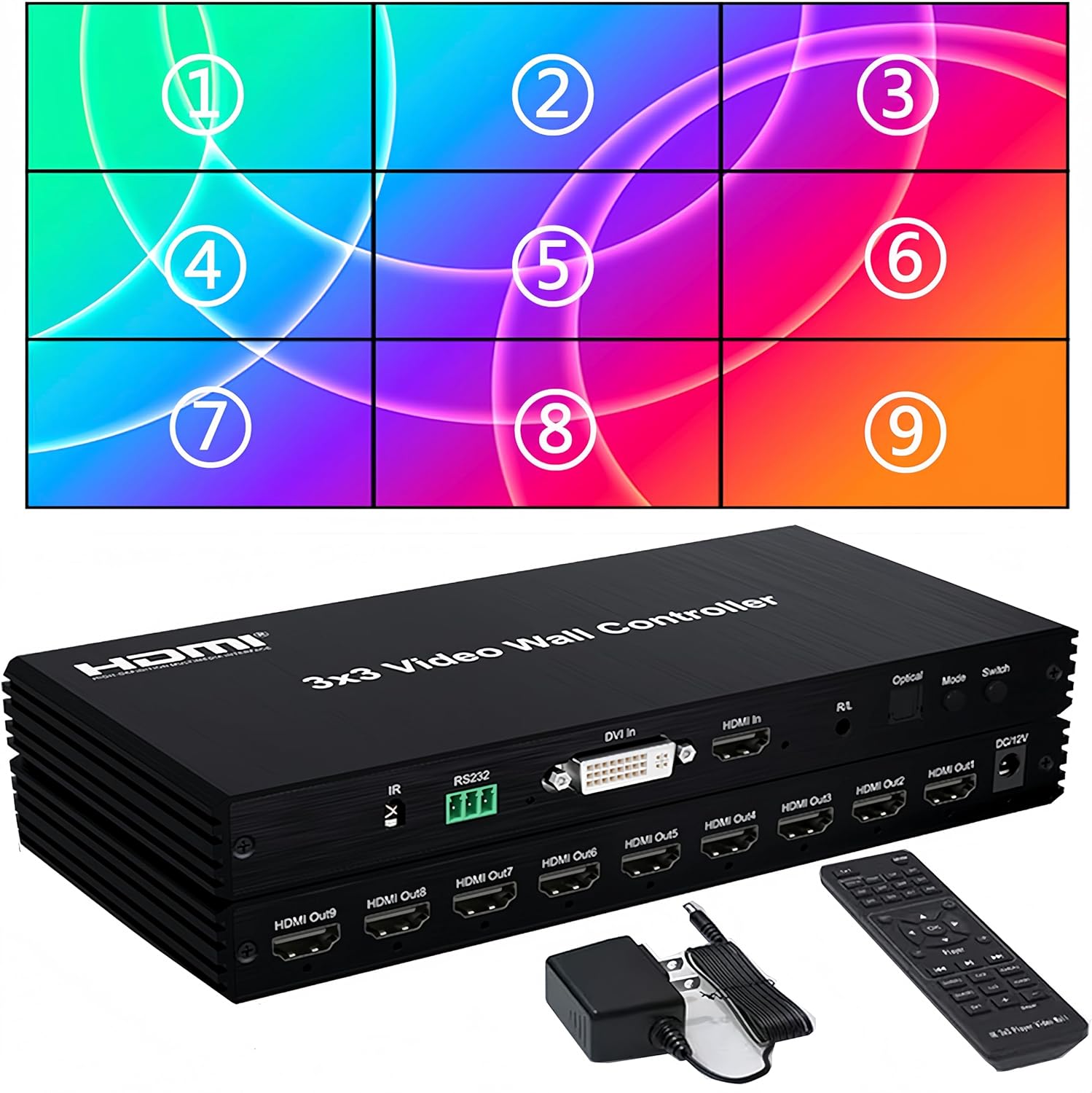

Product Description： This 3×3 video wall controller, supports 1 HDMI/DVI input and 9 HDMI outputs, the main function is to divide a single complete HDMI HD image signal into 9 display units (Rear projection screens, LCD TV.etc.), to make them form a large dynamic image screen. Specifications: HDMI input resolution ……………………………………………… 1080P/720P/576p/576i/480P; HDMI output resolution ………………………………………………… support 1920×1080/60Hz; Support video formats …………………………………….. RGB,YCbCr444,YCbCr442,YCbCr440; Support audio formats ………………………………………………………………………………….. Stereo; Max bandwidth …………………………………………………………………………. 4.95Gbit/s(1080P); Maximum Transfer Rate …………………………………………………………….. 3.96Gbit/s(1080P); Input/output cable length …………………………………. ≤15M,AWG26 HDMI standard cable; Max working current ……………………………………………………………………………… 0.4A Power adapter; specifications ……… input AC (50Hz, 60Hz) 100V-240V Output 12V DC/1A; Operating temperature range …………………………………………………… (-10℃～ +45℃); Dimension (L x W x H) …………………………………………………………. 226x110x25(mm);

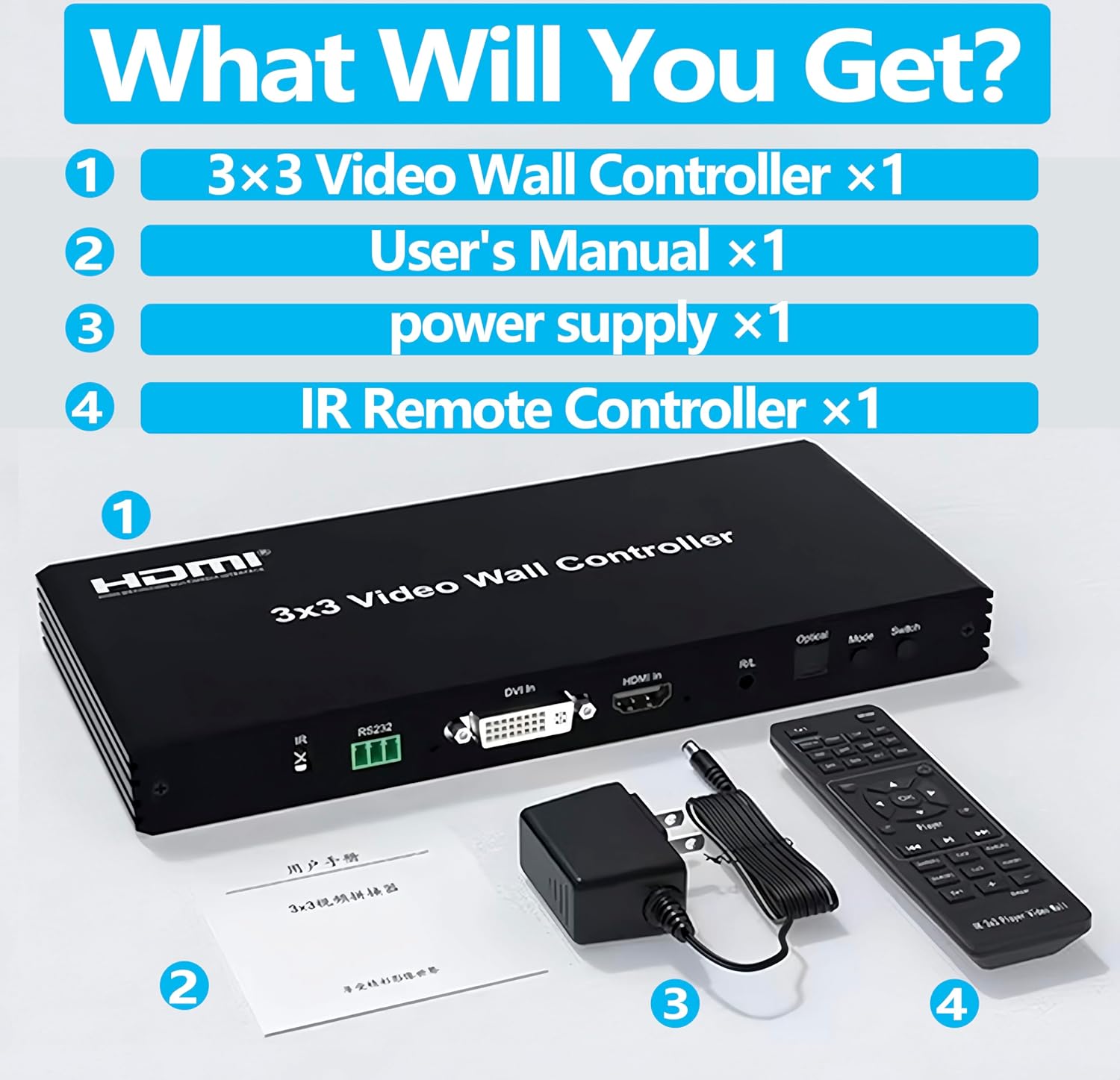

Product weight ………………………………………………………….520g; Package include: 1 x 3×3 Video Wall Controller; 1 x Remote contro; 1 x 12V DC power adaptor; 1 x User manua.

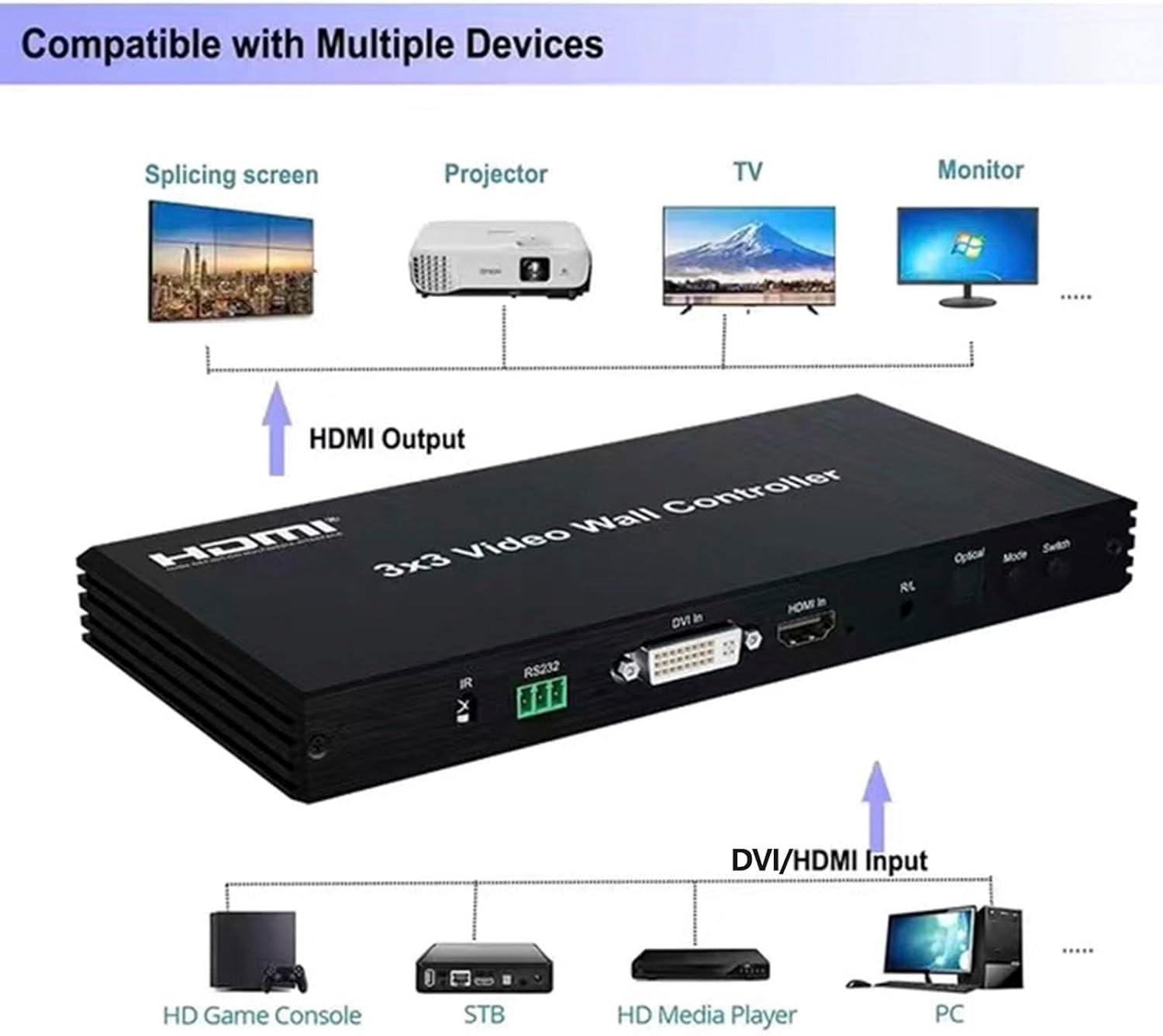

Compatible with multiple devices

Compatible with multiple devices

high compatibility:

Compatible with iOS, Windows, Android;

Devices compatible with computer mainframes, game consoles, laptops, projectors, televisions, monitors, etc.

Audio Separation Separate Outputs

Audio Separation Separate Outputs

Audio Separation Audio Separate Output:

Audio separation technology to improve the quality of the audio signal, the

3.5mm stereo/optical audio, two signals at the same time output independent audio output, bring users a better listening experience.

Cascade to higher modes

Cascade to higher modes

Cascade to higher modes:

Two units can be cascaded to realize 3×4 and 4×4 modes (can be set remotely).

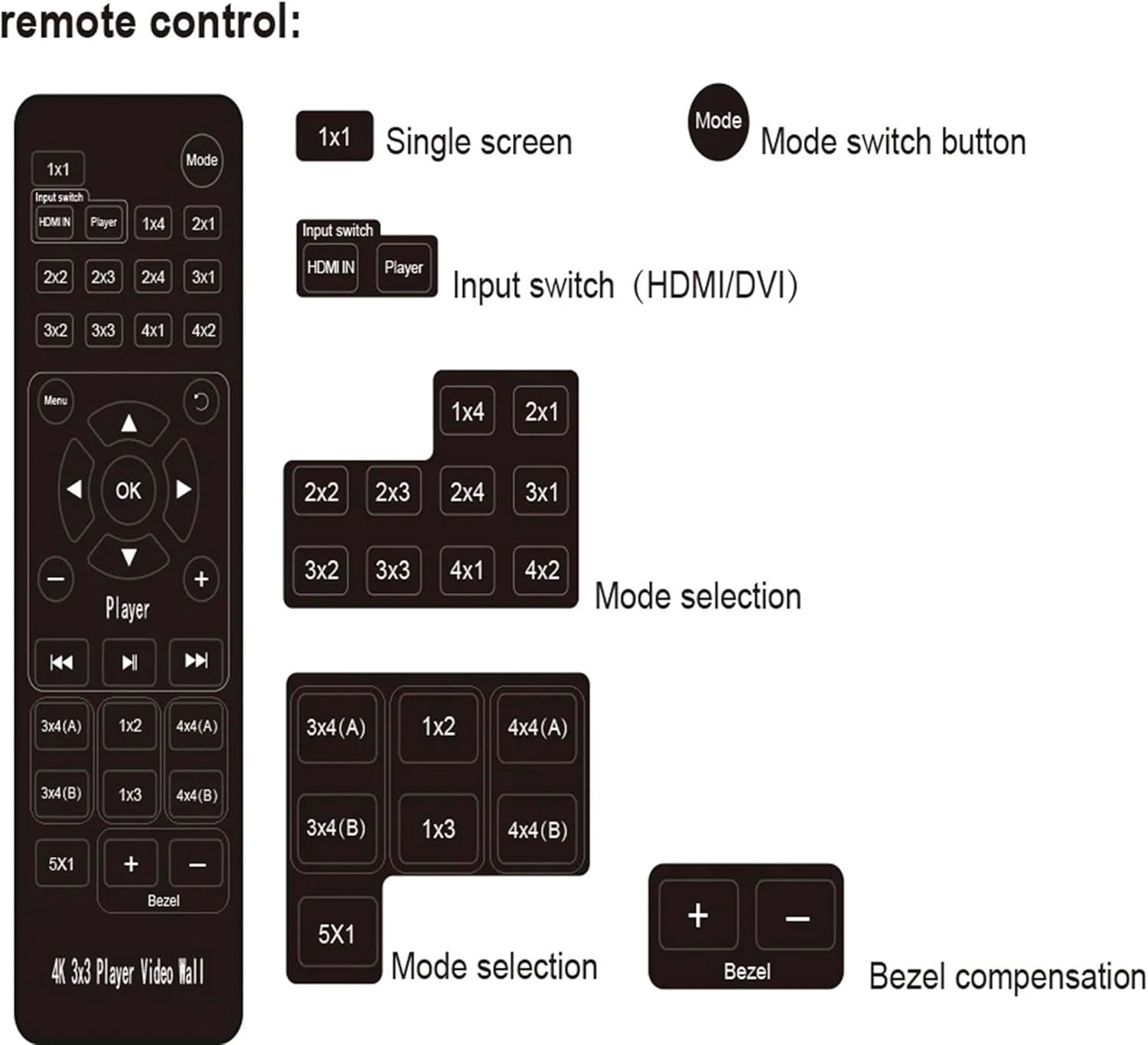

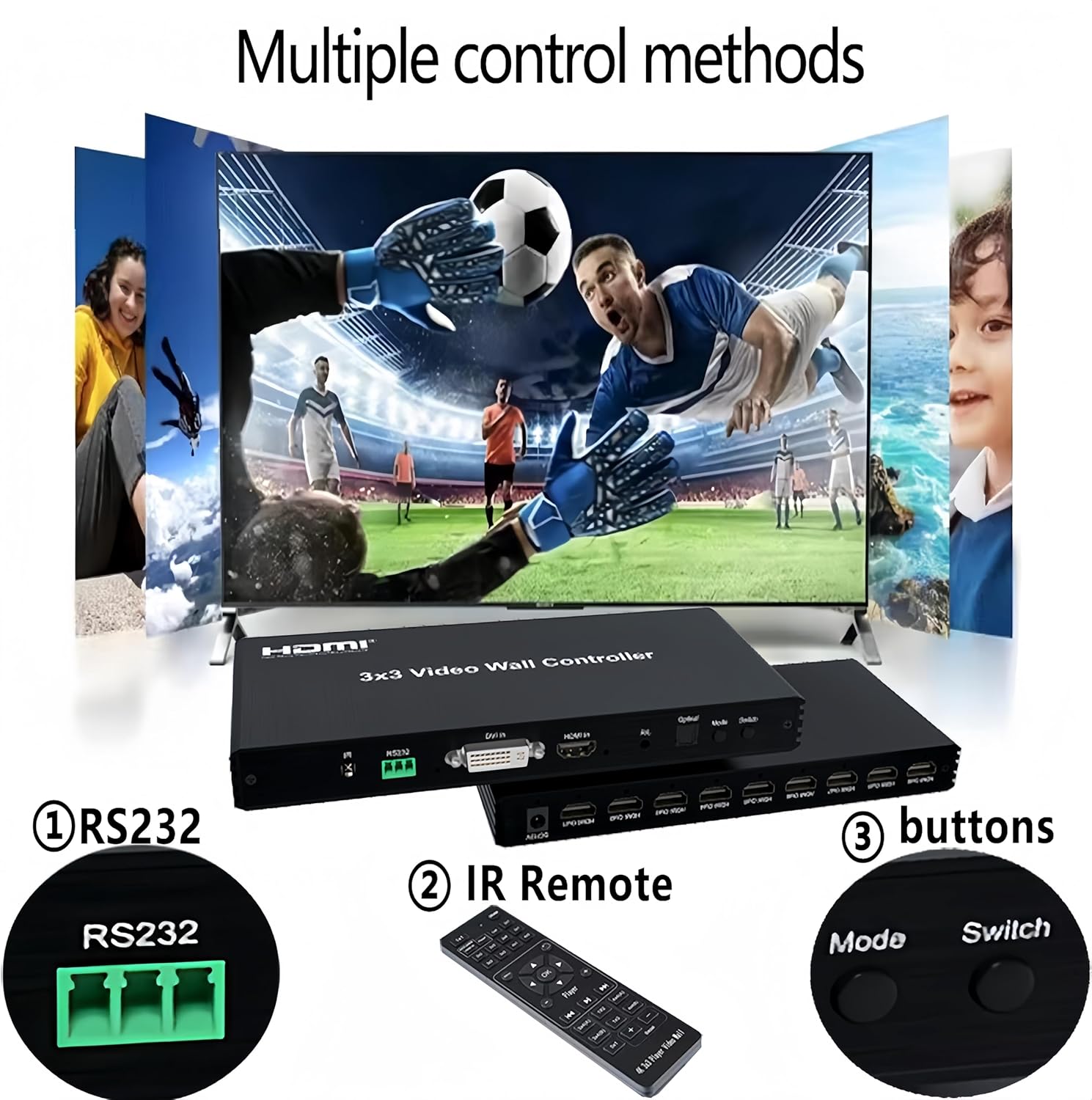

Note: Use the remote control to set the splicing mode.

Note: Use the remote control to set the splicing mode.

Note: Use the remote control to set the splicing mode.

3×4 mode: Splice A selects 3×4(A);

Splice B selects 3×4(B).

4×4 mode: Splice A selects 4×4(A);

Splice B selects 4×4(B).
